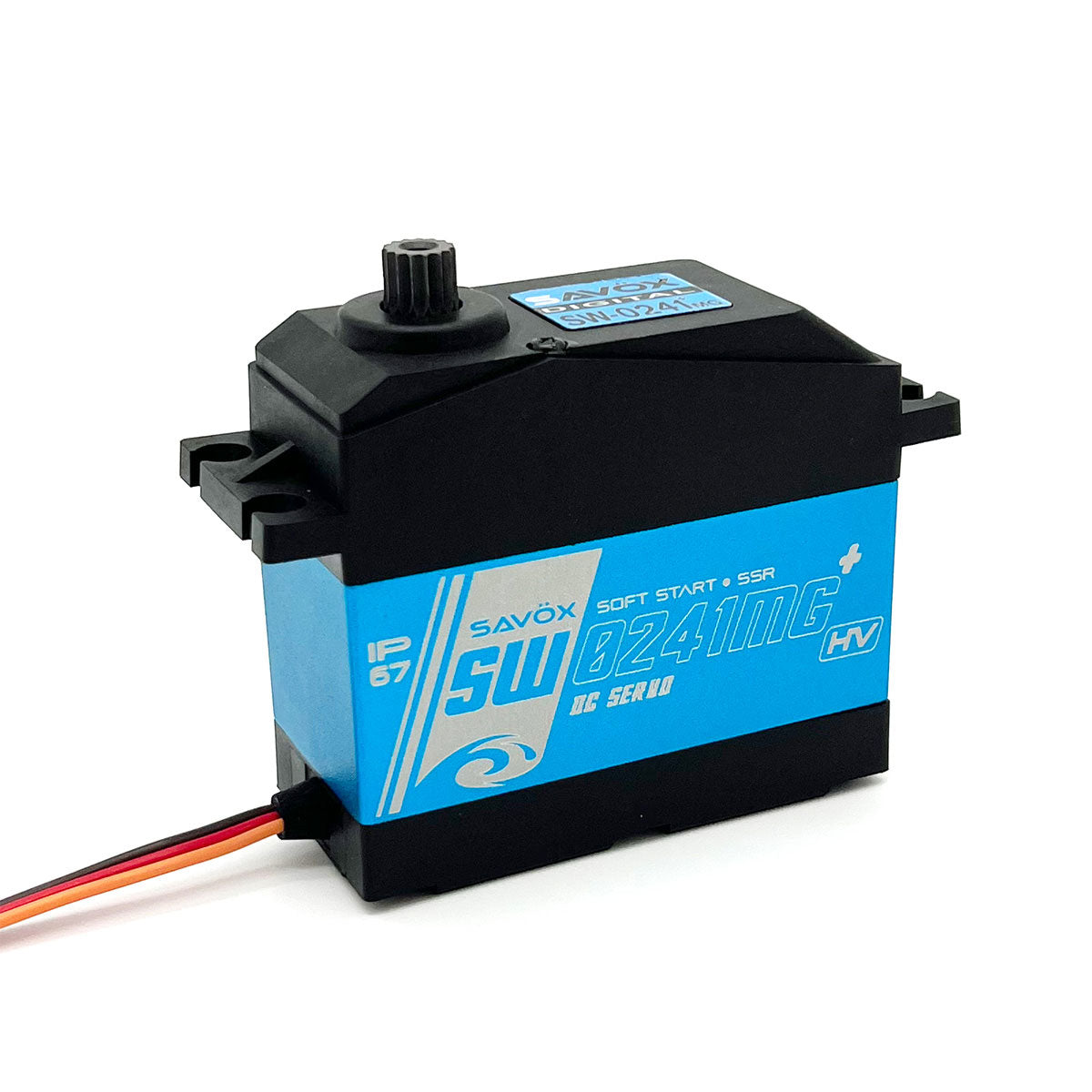

Savox Waterproof 1/5 Digital Plus Servo XRT X-Maxx Savage XL

The SW-0241MGP is a waterproof, large scale, and digital servo. It is metal-geared with an amazing amount of torque while capable of operating on high voltage.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

• Ideal for 1/5 scale off road, large scale boat and aircraft applications
• Waterproof case design.
• Strong metal gear train for added durability.

Specifications:

• Torque @6v - 30.0kg/416.6oz-in
• Torque @7.4v - 40.0kg/555.5oz-in
• Speed @6v - 0.21 sec/60 deg
• Speed @7.4v - 0.17 sec/60 deg
• Dimensions L x W x H (mm): 65.8 x 30.0 x 59.1
• Weight: 200.0g

Technical Details:

• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 150mA @6.0V, 180mA @7.4V
• Stall Current (at locked): 4600mA @6.0V, 5700mA @7.4V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 200 ± 5mm
• Output Gear Spline: 15 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (800 → 2200 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed
