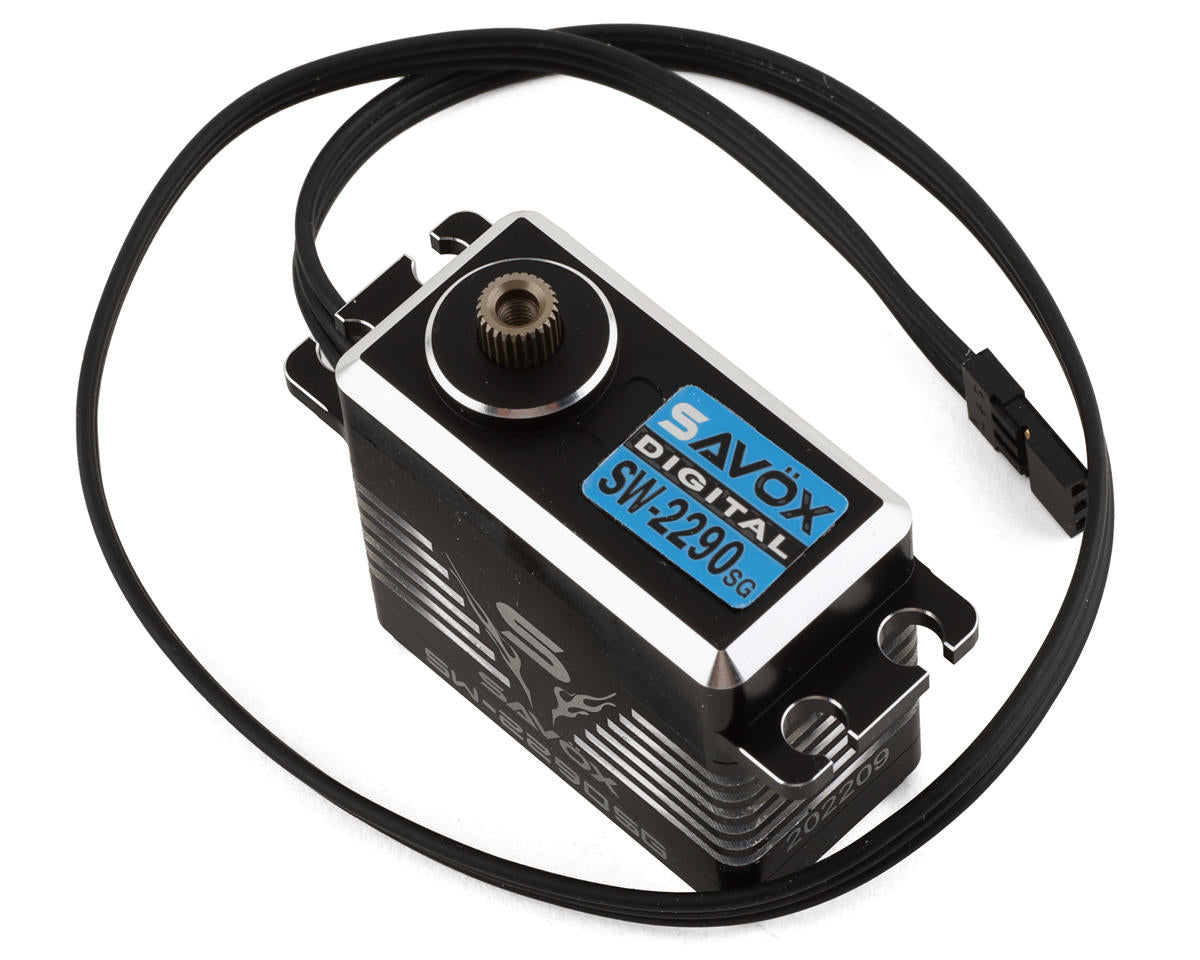

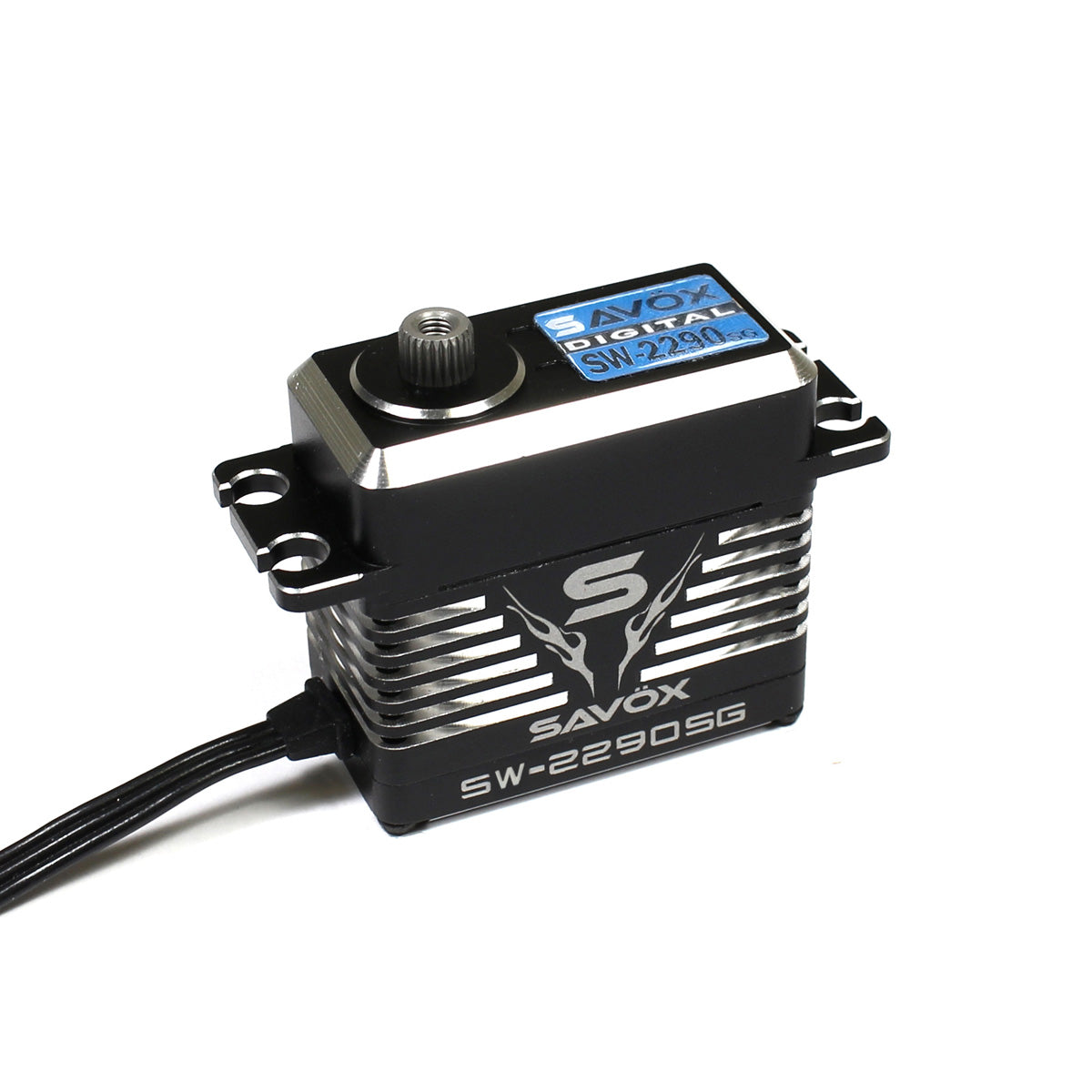

Savox 1/10 Waterproof Premium HV Brushless Digital Servo 8.4v BE

This is the Savox SW2290SG-BE Waterproof Premium Brushless Digital Servo, a powerful "Monster" performance series from Savox that utilizes an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

• Waterproof (IP67)
• Full Aluminum Case
• 3 Precision Ball Bearings.
• Unique steel gears

Torque @ 6v: 45.0kg/624.9oz-in

Torque @ 7.4v: 55.0kg/763.8oz-in

Torque @ 8.4v: 70.0kg/972.1oz-in

Speed @ 6v: 0.16 sec/60 deg

Speed @ 7.4v: 0.13 sec/60 deg

Speed @ 8.4v: 0.11 sec/60 deg

Dimensions: (LxWxH)(mm): 40.3x20.2x38.7mm

Weight: 81g

Operating Temperature: 14° - 122°F (-10° - 50°C)

Running Current (no load): 180mA @6.0V, 220mA @7.4V, 220mA @8.4V

Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V, 10500mA @8.4V

Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V

Wire Length: 300 +/- 5mm

Output Gear Spline: 25 Tooth

Bearings: 2BB

Operating Travel: 100° (1000 ? 2000 µ second)

Neutral Position: 1500 µ second

Pulse Width Range: 800 ? 2200 µ second

Maximum Travel: Appx 130° (900 ? 2100 µ second)

Refresh Rate: 333 Hz

Motor Type: Brushless
